Clincher DX

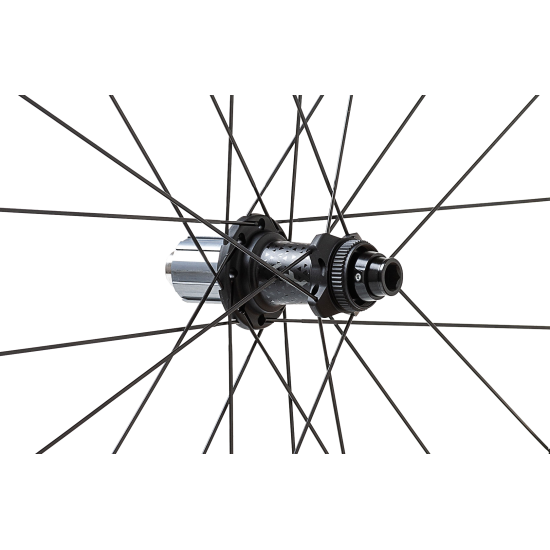

Hub body made of AL 7075 - T6, CNC-lightened, with innovative design and 16+8 pattern for a better torsional rigidity and responsiveness of the wheel. Adjustment of the front and rear hub smoothness through a special ring nut. To fix the brake disc rotor use only lock ring for thru axle with 27 mm hole.
Technical specifications
| CODE | WHRT50 |
| ASTM | 1 |
| HUBS | AL 7075 T6 |
| SPOKES | Stainless steel black / aero / straight pull / double butted |
| NIPPLES | AL 7075 T6 / Black |
| WEIGHT (+/-3%) | 1620 (+/- 3%) (Tubeless Ready +20) |
| ASSEMBLY | 24 - 24 / Crossing |
| O.L.D. (MM) | 100 - 142 |
| BEARINGS | MICHE® 2RS |
| TRANSMISSION | RES 30 Rapid Engagement System |
| COMPATIBILITY | Shimano® HG,SRAM® XDR |
| MAX LOAD WHEEL + USER (KG) | 109 Kg |
| RIM PROFILE (MM) | F 50 - R 50 |
| BRAKING SYSTEM | Disc Center Lock |
| RIM MATERIAL | UD Carbon fibre |
| FREEWHEEL BODY | AL 7075 T6 - Steel |
| RIM DIMENSION | 622X22 TC |
| TYRE DIMENSION | 25mm ÷ 34mm |
| TYRE TYPE | Tubeless |
| FRONT AXLE (MM) | 12 |
| REAR AXLE (MM) | 12 |
