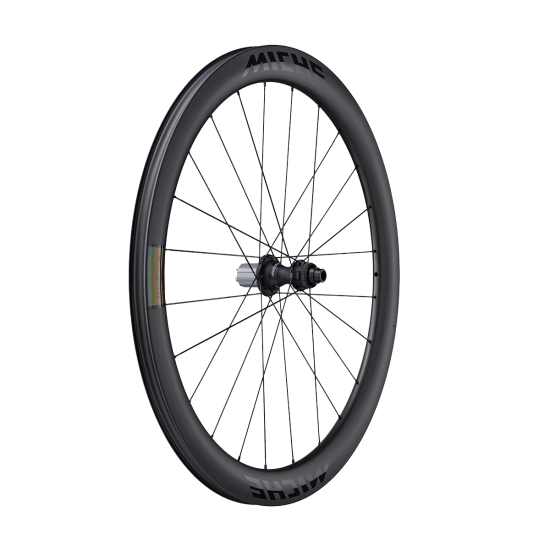

NEW KLEOS 2026
The new Kleos wheels represent the evolution of the concept of performance on the road. Designed for cyclists seeking speed, reliability and high level aerodynamics, they stand out for their technical design and careful construction.
The entire range is presented today with a completely renewed graphic look, for a modern, essential appearance with a strong visual impact.
The range is available with four rim profiles: 42, 50, 67 and 85 mm, to suit every riding style and condition.

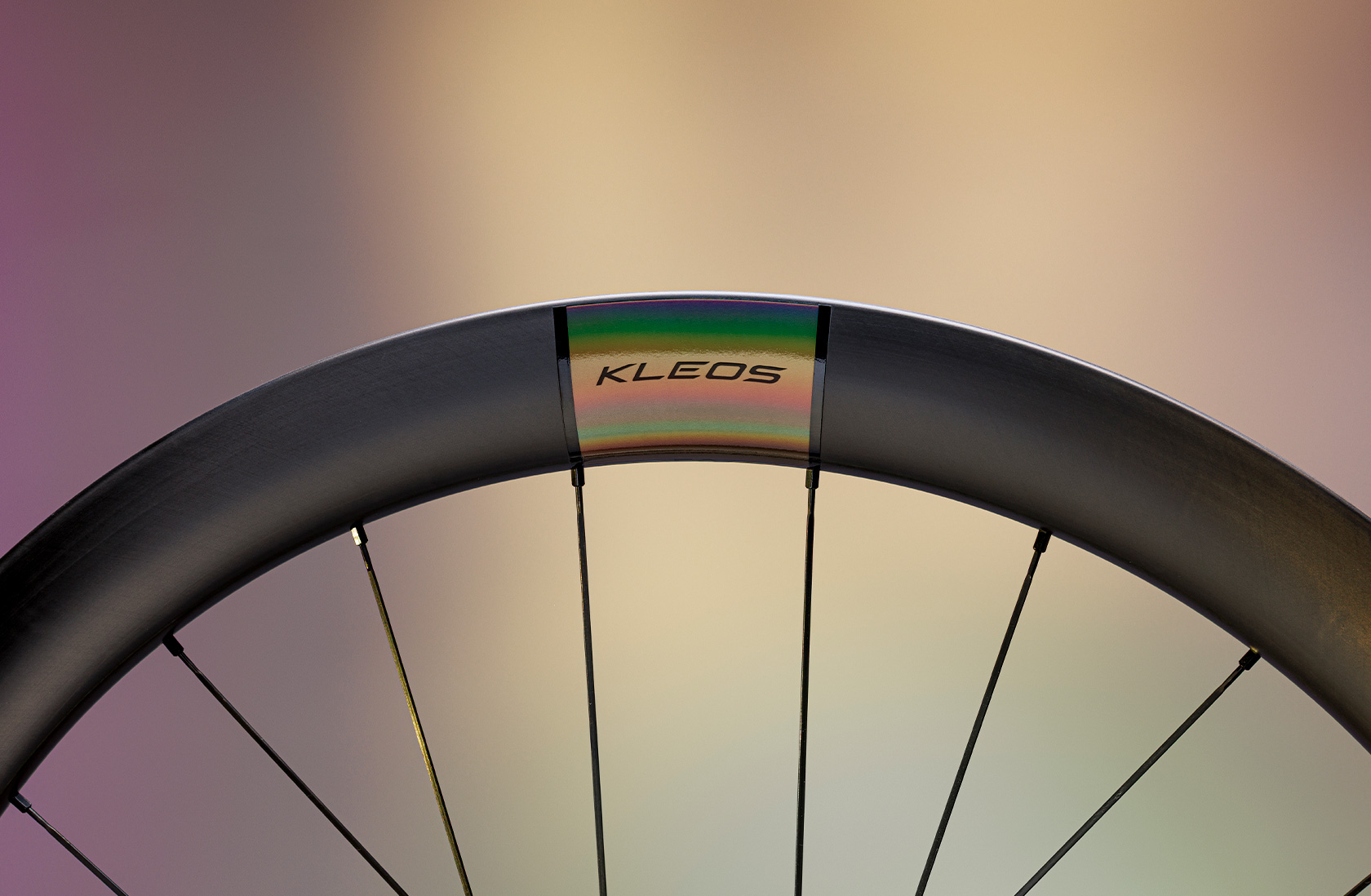

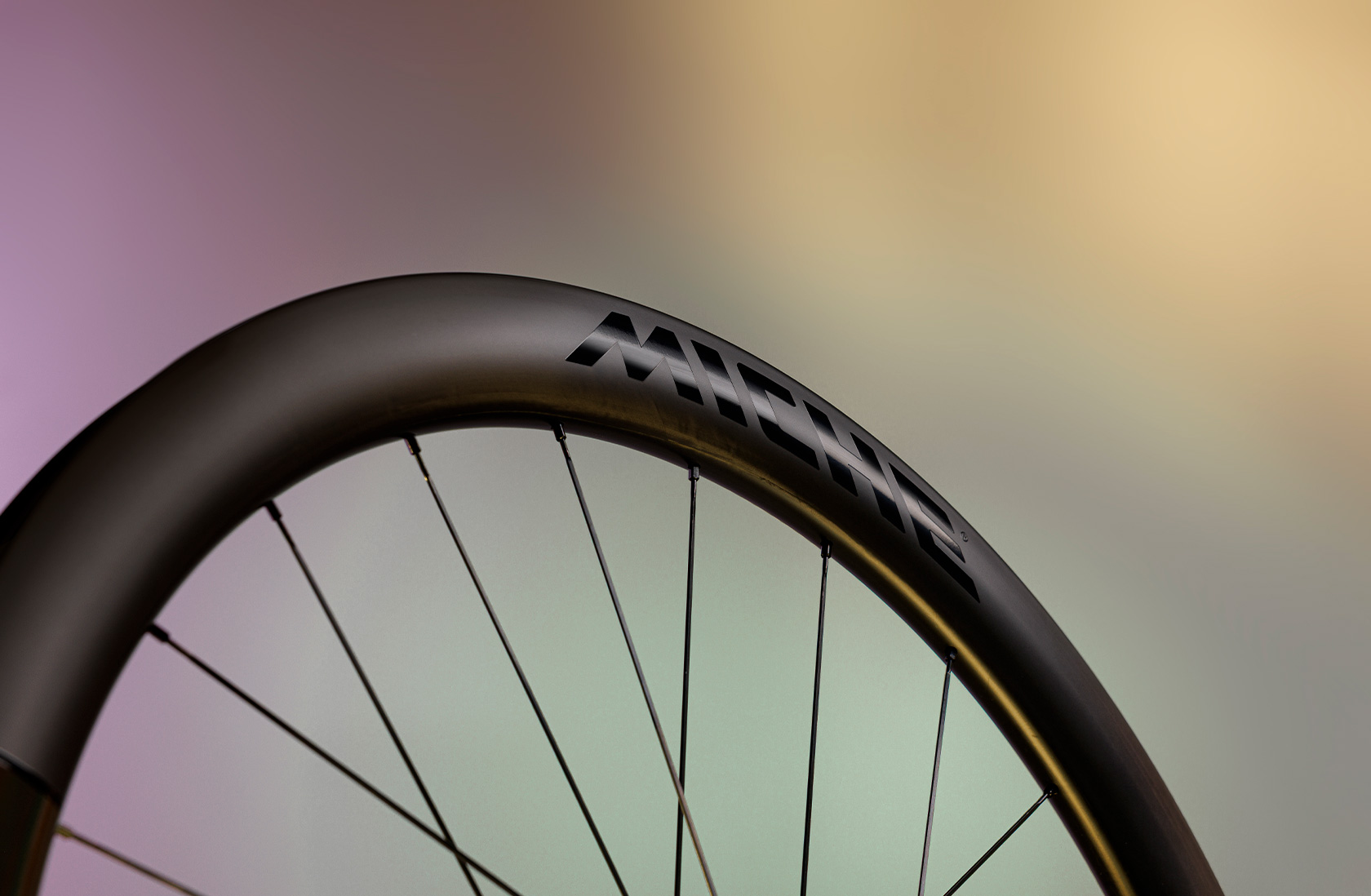

RIM
The Kleos wheels series have been renewed in the profiles with a careful study to offer an ideal balance between weight, aerodynamics and reactivity.
The rim is made of T700 UD carbon fibre with a matte finish.

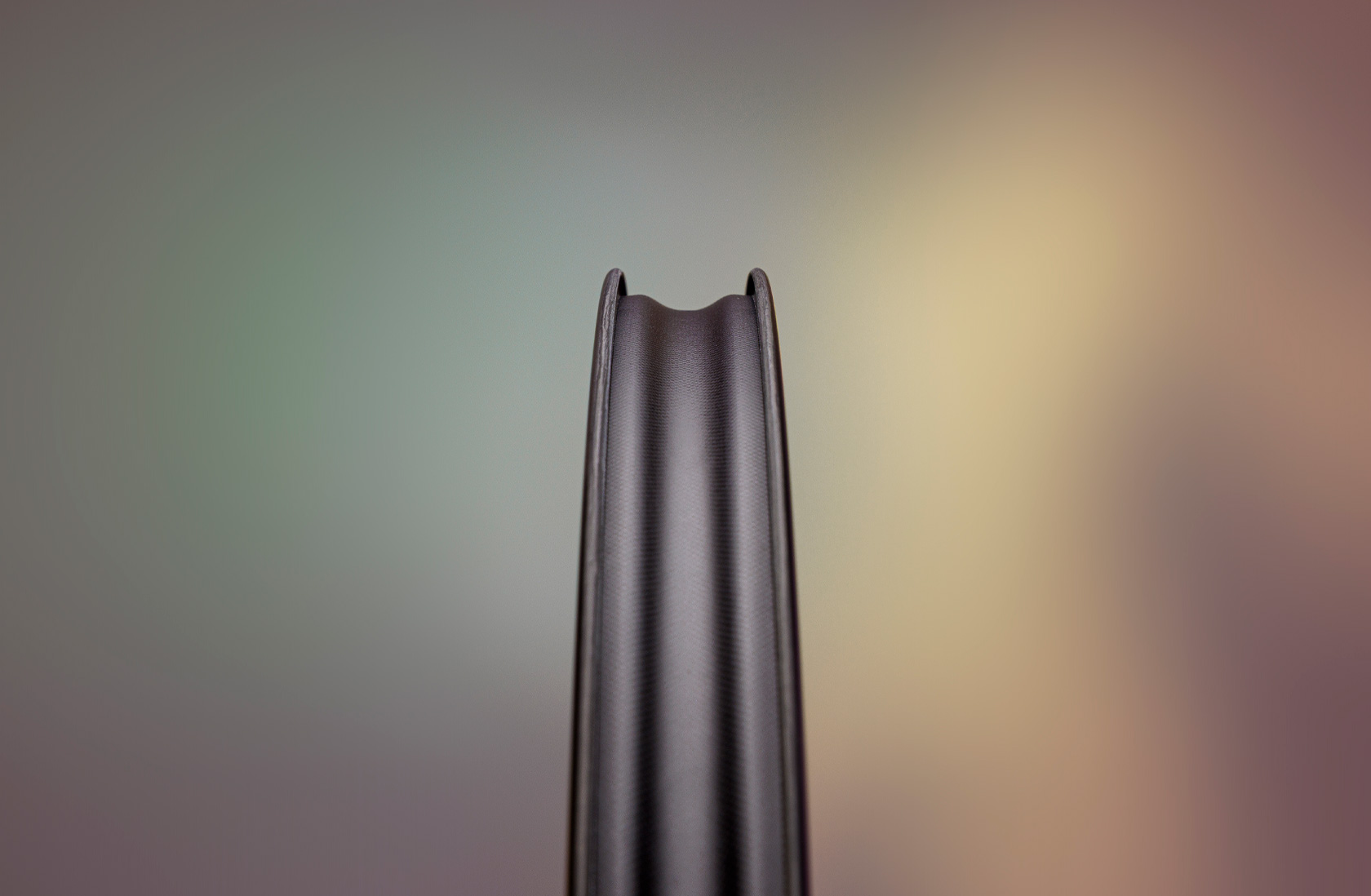

INNER RIM
The internal width has been increased to 23 mm and is optimised for use with new generation tires with an enlarged section, improving the tire/rim interaction and cornering stability.
Optionally available with a tubeless kit assembled and guaranteed by QC Miche®.
HUBS
For Kleos wheels, we designed our GS series hubs
The CNC-machined AL 7075 - T6 hubs with a lightweight design are fitted with highperformance bearings and feature simplified hub adjustment, even with the wheel mounted, using a dedicated smoothness adjustment ring.
The free wheel body is available with Shimano® HG, Campagnolo® (UD and N3W) and SRAM® XDR standards.
The new design of the axle and high smoothness bearings has improved torsional rigidity that, combined with the smoothness adjustment rings, allows precise adjustment of the hub and optimal transmission of forces.
TECHNICAL SPECIFICATIONS
| CODE | WHKL51B |
| ASTM | 1 |
| HUBS | AL 7075 T6 |
| SPOKES | Stainless steel black / aero / straight pull / double butted |
| NIPPLES | AL 7075 T6 / Black |
| WEIGHT (g) | 1545 XDR (+/- 3%) (Tubeless Ready +20) |
| ASSEMBLY | 16+8 - 16+8 / Radial / Crossing |
| O.L.D. (mm) | 100 - 142 |
| BEARINGS | EZO® Steel Sealed |
| TRANSMISSION | RES 30 Rapid Engagement System |
| COMPATIBILITY | Shimano® HG, SRAM® XDR |
| MAX LOAD, BIKE + USER (kg) | 109 Kg |
| RIM PROFILE (mm) | F 50 - R 50 |
| BRAKING SYSTEM | Disc Center Lock |
| RIM MATERIAL | UD Carbon fibre |
| FREEWHEEL BODY | AL 7075 T6 - Steel |
| RIM DIMENSION | 622x23 TC |
| TYRE DIMENSION | 28mm ÷ 40mm |
| TYRE TYPE | Tubeless |
| FRONT AXLE (mm) | 12 |
| REAR AXLE (mm) | 12 |
