- Stock: Out Of Stock
- SKU: 243011

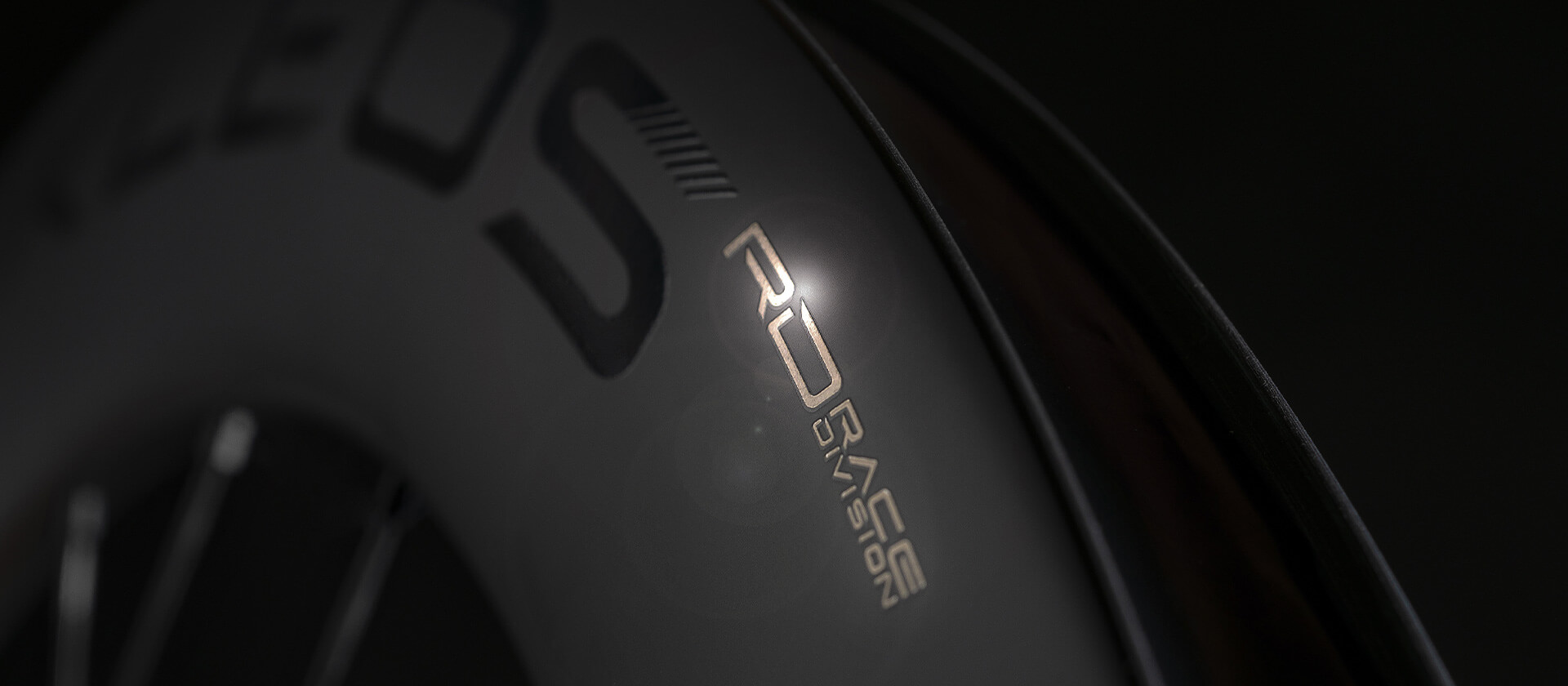

The Aero system
The careful study of the rim's aero profile together with the clever differentiated thickness lamination of the high- and medium-module fibre mix make for a balanced wheel with absolutely superb stiffness and responsiveness. This design has made it possible to lighten the rim thus reducing rotational inertia, achieving a weight of 1560g. The mixed profile combination of the 50 mm front wheel with 21 mm inner well and 62 mm rear wheel with 23 mm inner well produces a wheelset that couples a reduced weight of just 1500g with the most advanced concepts of aerodynamics.
Spirit becomes style
The elegance of the racing grey paint job meets a new graphic identity. After being applied, the water transfer decals undergo heat treatment. This eliminates the step effect, increases resistance and makes it possible to transfer the lettering and colours to the rim.
Ultimate compatibility
Three freewheel bodies available: Shimano HG and SRAM XDR. Made from Ergal 7075 T6, they feature a three-nipple pawl carrier in titanium.
Technical specifications
| Code | WHKR60B0U |
| Hubs | AL 7075 T6 |
| Spokes | Stainless steel black / aero / straight pull / double butted |
| Nipples | AL 7075 T6 / Black |
| Weight (g) | 1560 XDR (+/- 3%) (Tubeless Ready +20) |
| Assembly | 24 - 24 Radial / Crossing |
| O.L.D. (mm) | 100 - 142 |
| Bearings | CeramicSpeed® 2RS |
| Transmission | RES 30 Rapid Engagement System |
| Compatibility | Shimano® - XDR |
| Rim profile (mm) | F 62 - R 62 |
| Max load, bike + user (kg) | 109 Kg |
| Braking system | Disc Center Lock |
| Rim material | UD Carbon fibre |
| Freewheel body | AL 7075 T6 - Titanium |
| Rim dimension | 622x23 TC |
| Tyre dimension | 28mm ÷ 38mm |
| Tyre type | Tubeless / Clincher |
| Front axle (mm) | 12 |
| Rear axle (mm) | 12 |
